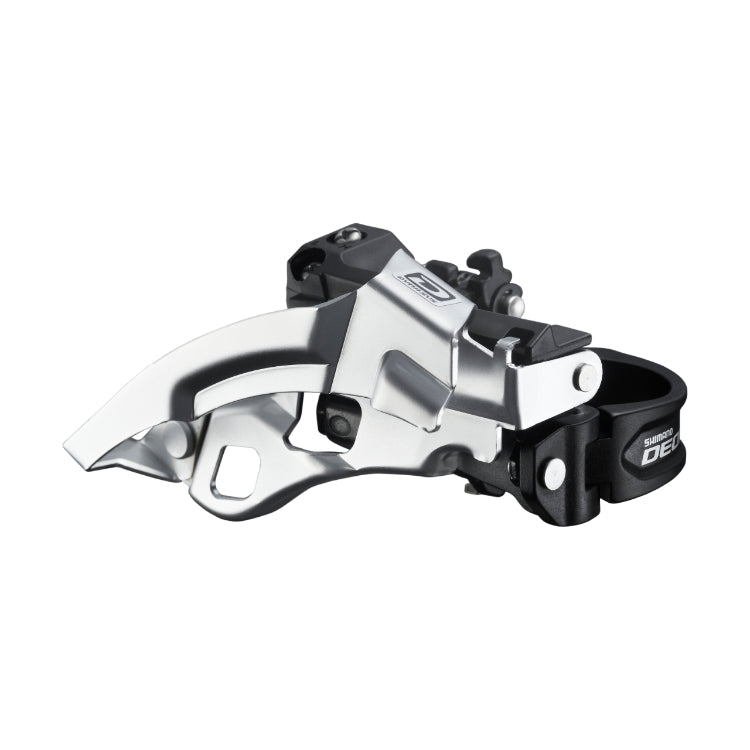

Shimano Deore Top Swing Front Derailleur FD-610
Shimano Deore Top Swing Front Derailleur FD-610
Regular price
₱500.00
Regular price
₱1,015.00
Sale price
₱500.00
Unit price
/
per
Couldn't load pickup availability
SHIMANO DEORE - Front Derailleur - TOP SWING - Clamp Band Mount - 3x10-speed
The SHIMANO DEORE M610 series front derailleurs provide reliable, accurate 3x10 speed shifting. They are available in a variety of formats to suit most mountain bike frames.
| MODEL NO | FD-M610-B |
|---|---|
| SERIES | DEORE M610 Series |
| Color | Black |
| Front speeds | 3 |
| Rear speeds | 10 |
|---|---|
| Compatible chain | HG-X 10-speed |
| Action|TOP SWING | ✔ |
| Mount|Clamp Band (mm)|28.6 | X (w/ S size adapter) |
| Mount|Clamp Band (mm)|31.8 | X (w/ M size adapter) |
| Mount|Clamp Band (mm)|34.9 | ✔ |
| Cable route type|Dual-Pull | ✔ |
| Chain line (mm) | 50 |
| Chain stay angle (deg.) | 66-69 |
| Top gear teeth | 40-42T |
| Total capacity | 18T |
| Applicable top-mid tooth difference | 10T |
| Multi access cable fixing screw | ✔ |
| Angled stroke adjust screw | ✔ |
| Angled clamp band design | ✔ |
| Link bushings | 2 |
