Wittson Road Race Disc Iluminati

What makes the Illuminati so special? As you might know, our family artisan workshop specializes in building custom titanium frames and if we decide to offer something standard it means it should be something really special. With Illuminati we wanted to create the stiffest road race disc frame ever built, therefore we have created this frame from scratch and you won’t find anything like it on the market. The frame is built from oversized tubes in super compact geometry with shallow seatstays creating a triangular look, which has given the Illuminati its name. And if that weren't enough, we have shaped a diamond toptube in seamless Grade 9 titanium! To add even more stiffness, we have built the Illuminati with a conical 1.5” headtube, PressFit 30 bottom bracket, made in USA flat disc mount combined with DT Swiss thru axle dropouts. Simply put, if you’re searching for a racing disc machine and rigidity is top of your list, this is your choice! Handcrafted in Europe.

Weight: 1480g (size M)

Material: grade 9 ti

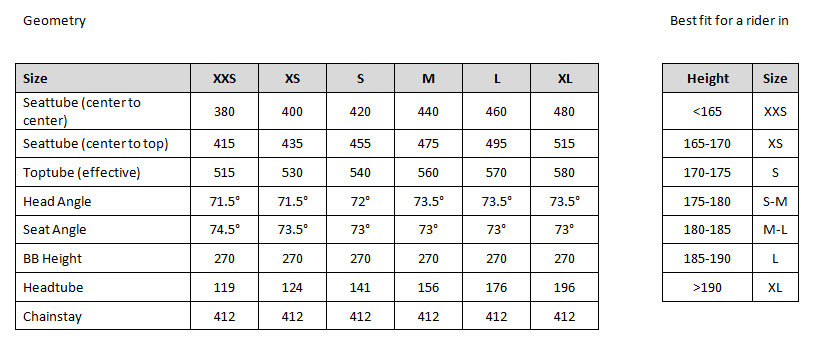

- road race disc geometry
- oversized conical internally butted headtube for 1.5" fork
- diamond hydroformed toptube
- oversized double butted downtube
- double butted seattube
- shallow hydroformed seatstays
- Illuminati triangle seatstay bridge
- hydroformed chainstays
- integrated brake cable routing
- integrated shifting cable routing
- PressFit 30 bottom bracket
- flat disc mount
- made in USA PARAGON dropouts compatible with both DT Swiss 142 x 12mm and SHIMANO 142 x 12mm hangers
- DT Swiss 142 x 12mm thru axle removable alu hanger
- hand brushed finish
- custom sandblasting
- ti headbadge
- anodized bolts

Compatible with: integrated tapered IS42/28.6 | IS52/40 headset, PressFit 30 bottom bracket, flat mount disc brake caliper, thru axle 142 x 12mm rear hub, 31.6mm seatpost, 34.9mm clamp band front derailleur, max 28C tyre

Inclusive: headset CANE CREEK 110, seatpost clamp THOMSON, hanger PARAGON x DT Swiss 142 x 12mm (anodized alu), skewer DT Swiss RWS 142 x 12mm, bottlecage bolts WITTSON (anodized alu) 4 pcs, internal gear nose (anodized alu) 2 pcs

Valid Lifetime Warranty!
